2016 Yamaha 190 FSH Sport mods

[William]

Bow fishing chair installed

IMG_0963

• William
• Aug 25, 2017
• 3

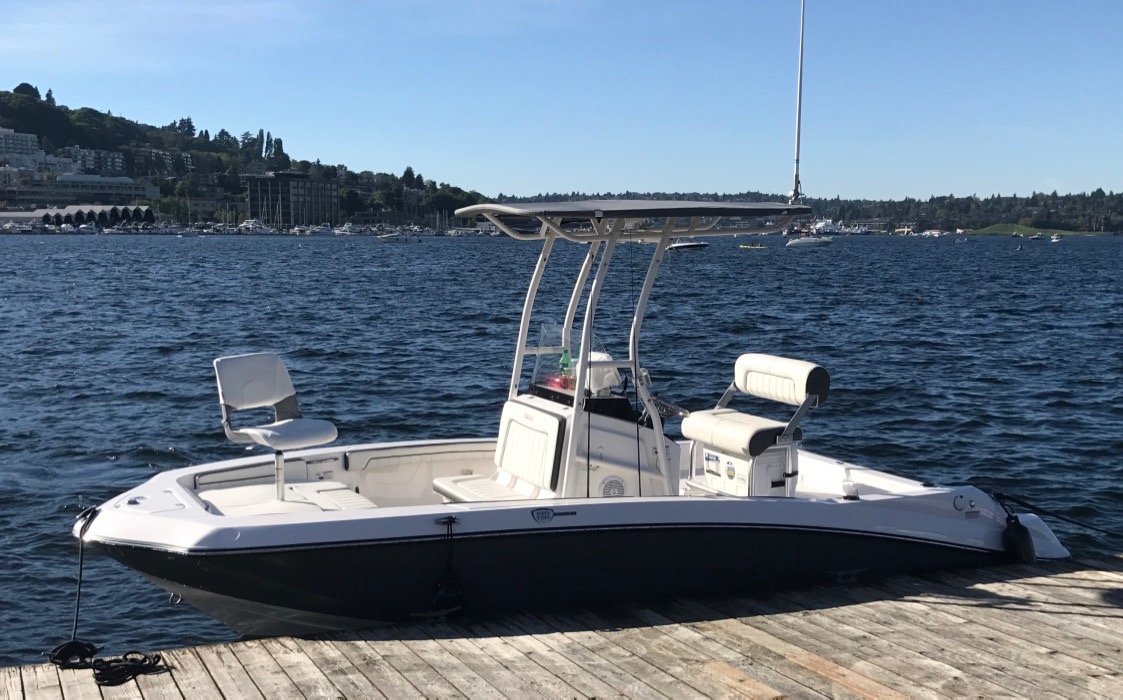

Yamaha 190 FSH Sport bow fishing chair

IMG_0788

• William
• Aug 25, 2017
• 1

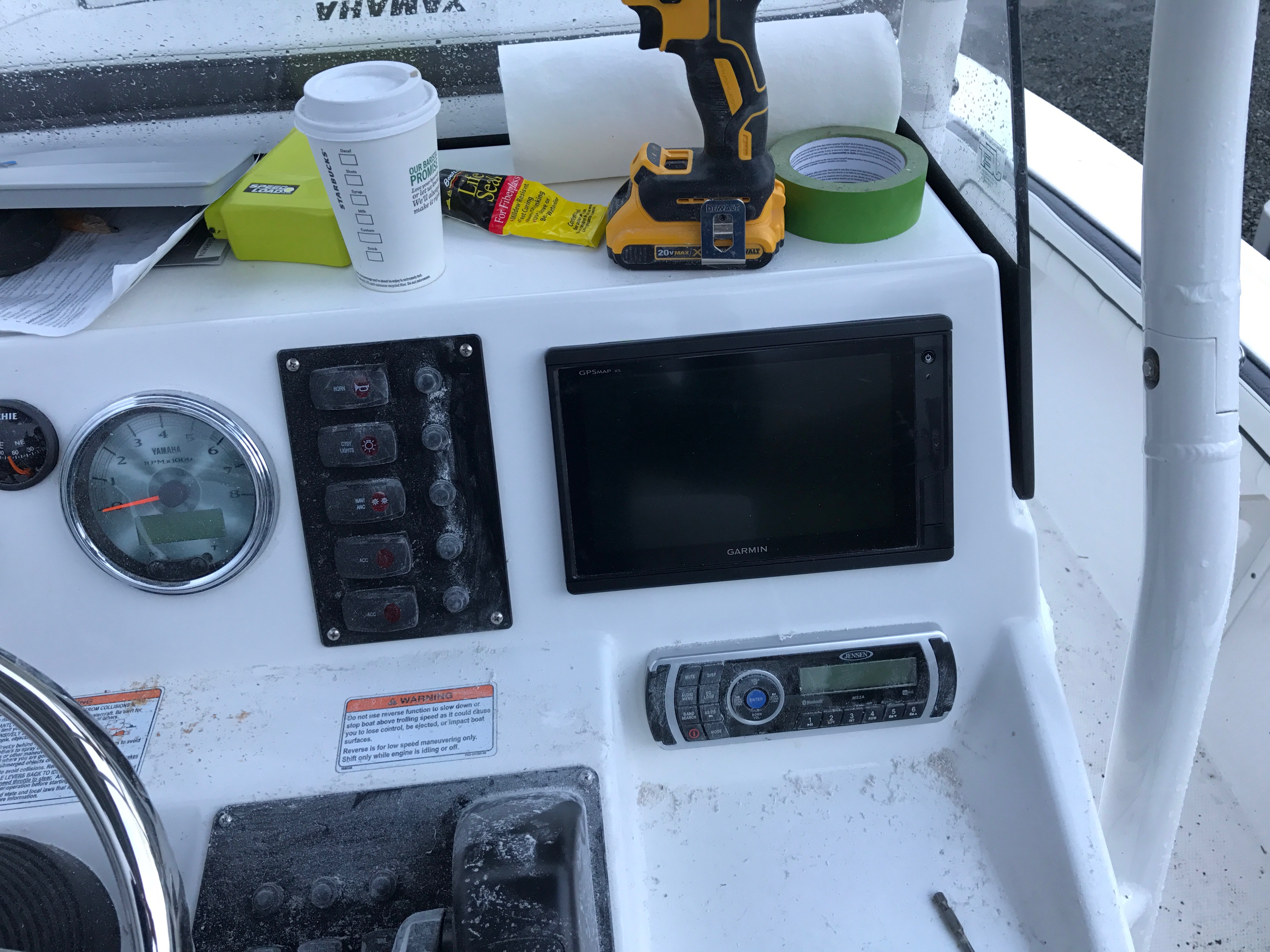

Yamaha 190 FSH Garmin install

Installed Garmin using rotary tool to cut the fiberglass ran wire to transducer below and power fuse block

IMG_0784

• William
• Aug 25, 2017

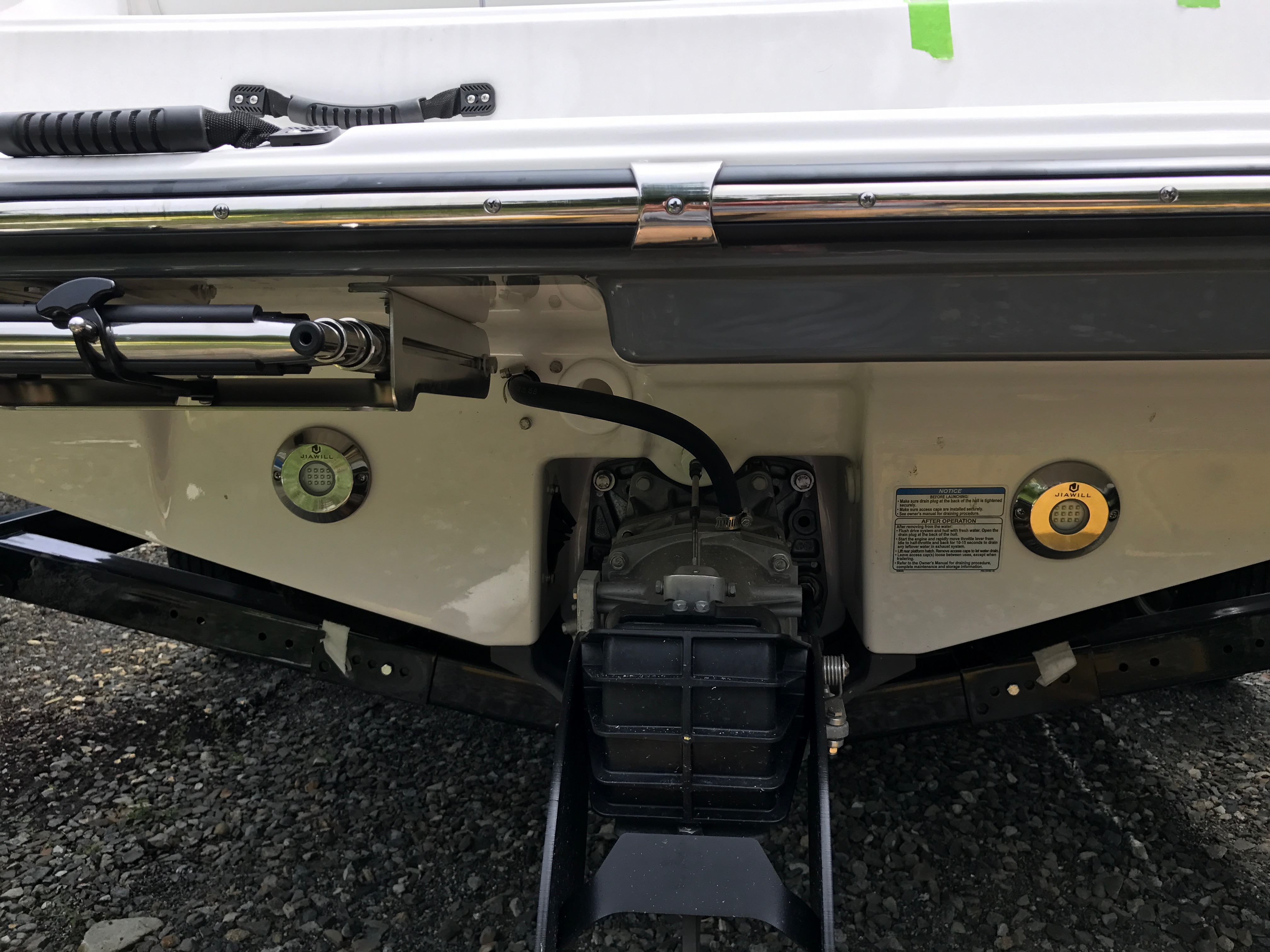

190 FSH Transducer

IMG_0844

• William
• Aug 25, 2017
• 2

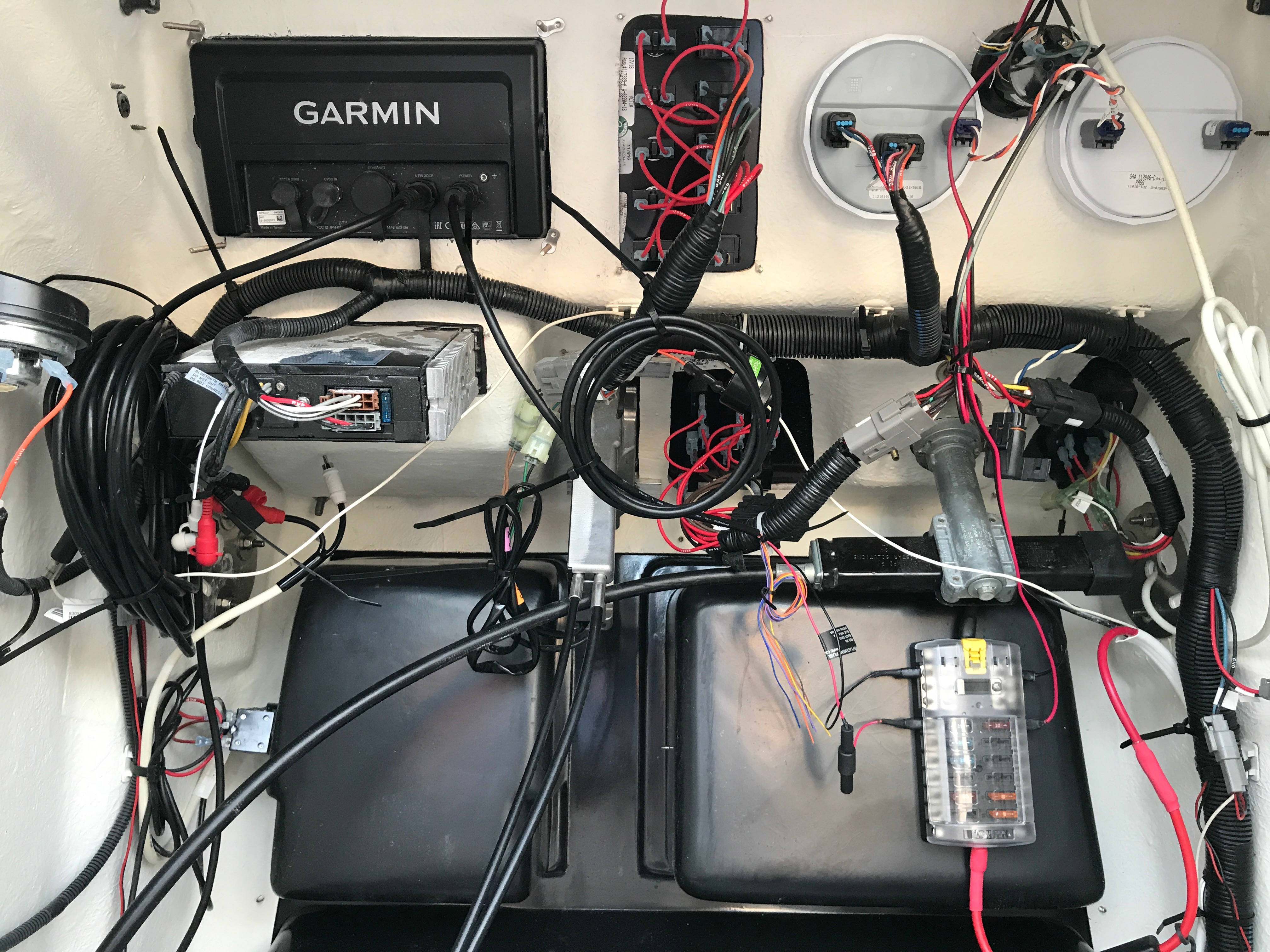

Yamaha 190 FSH Garmin and Fuse Block install

Installed lights ran power to accessory switch

IMG_0099

• William
• Aug 25, 2017

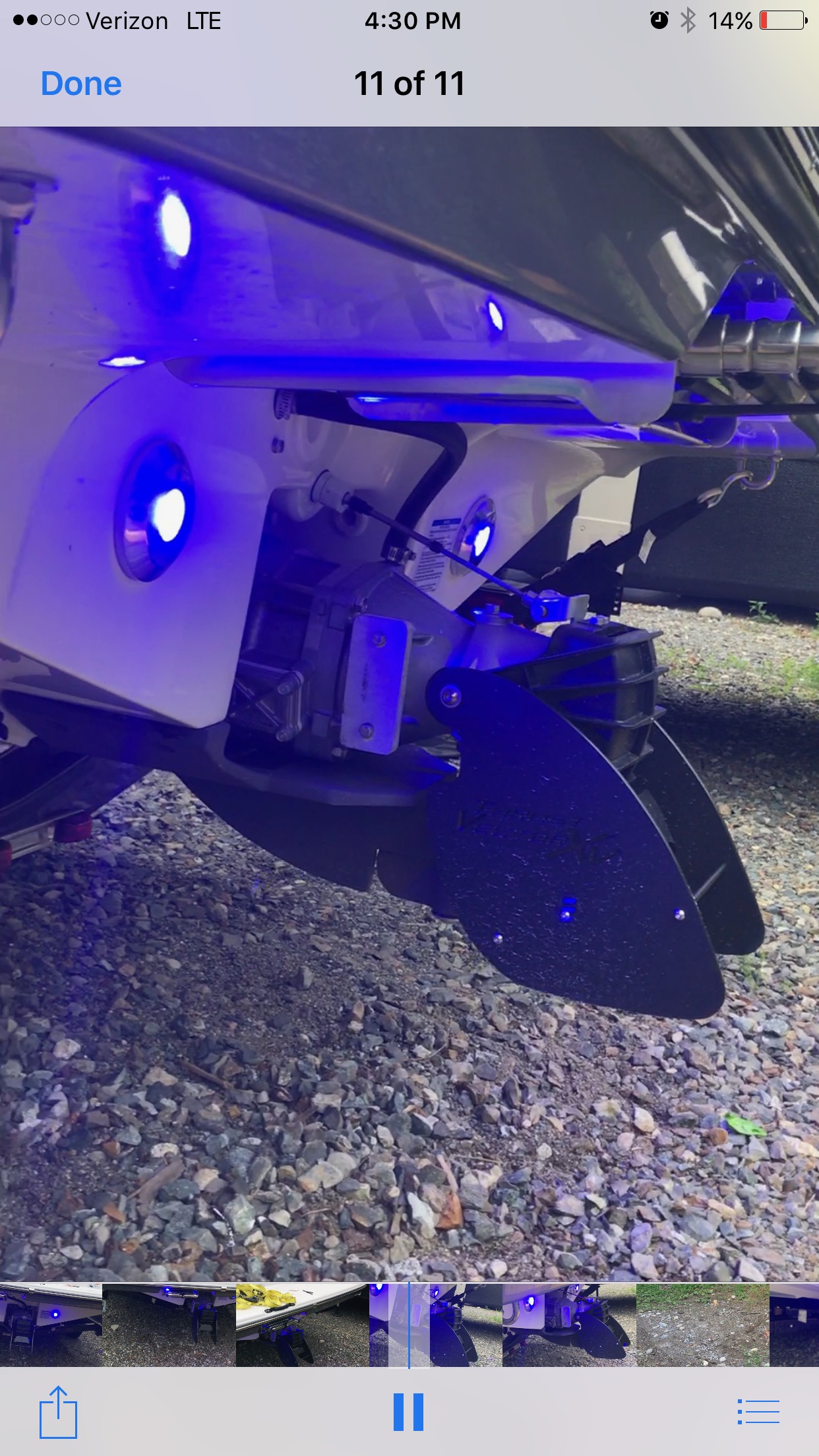

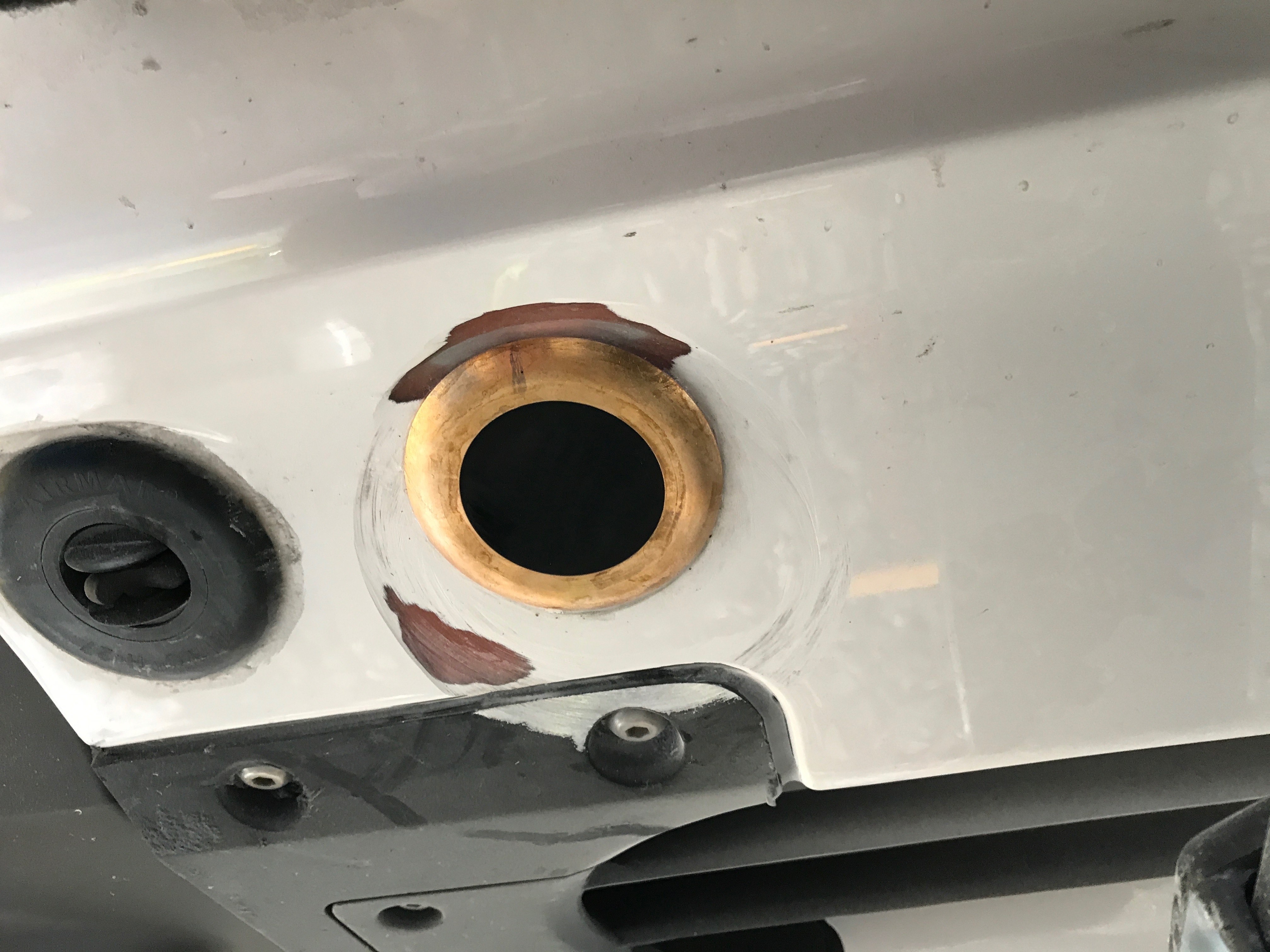

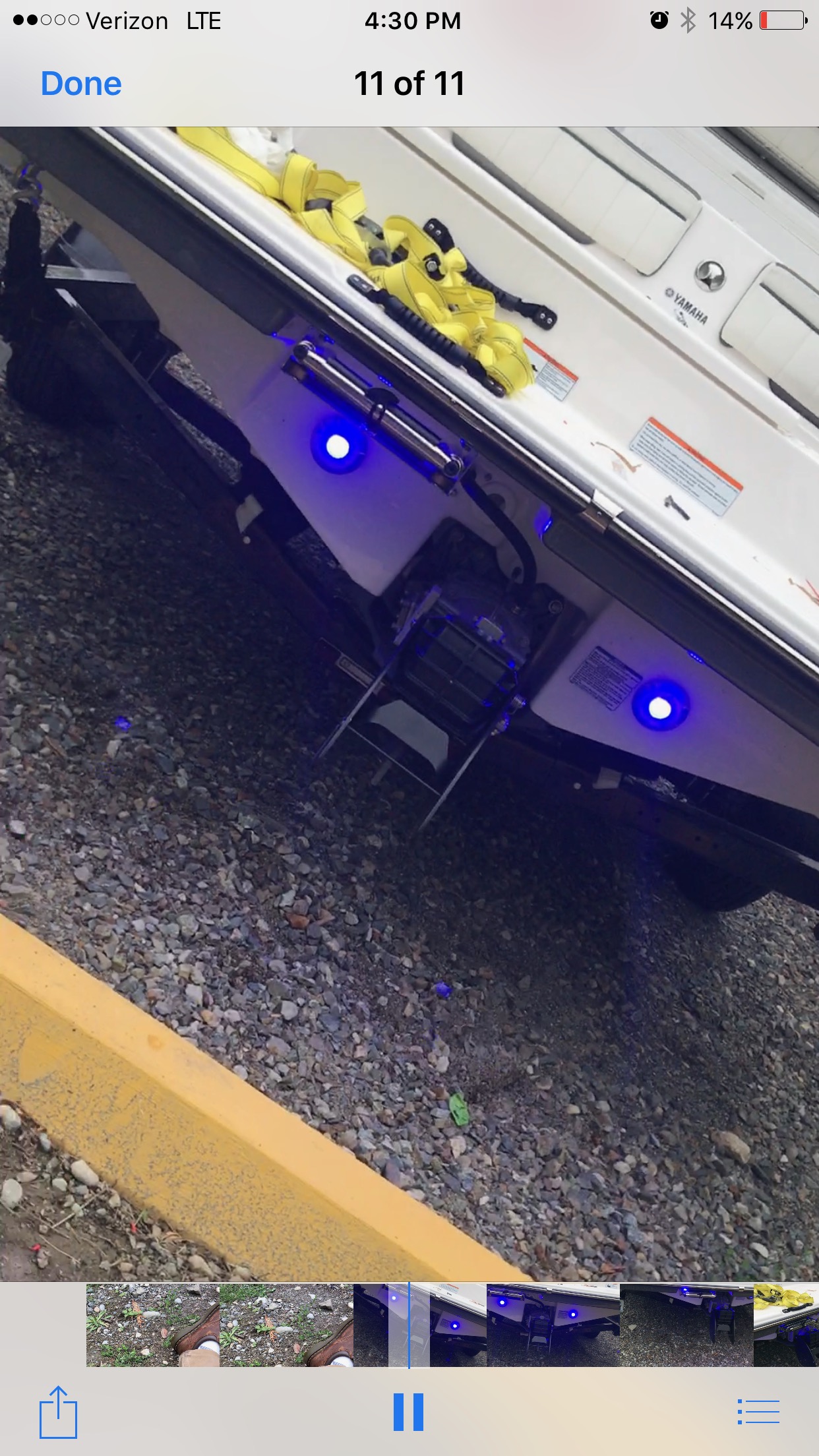

Yamaha 190 FSH lights and thrust vector

Installed them too high and they come out of the water, need to reinstall next summer lower and this time make them level lol

IMG_0095

• William
• Aug 25, 2017

IMG_0089

• William
• Aug 25, 2017
• 2

Installed head and toilet paper holder

IMG_0849

• William
• Aug 25, 2017

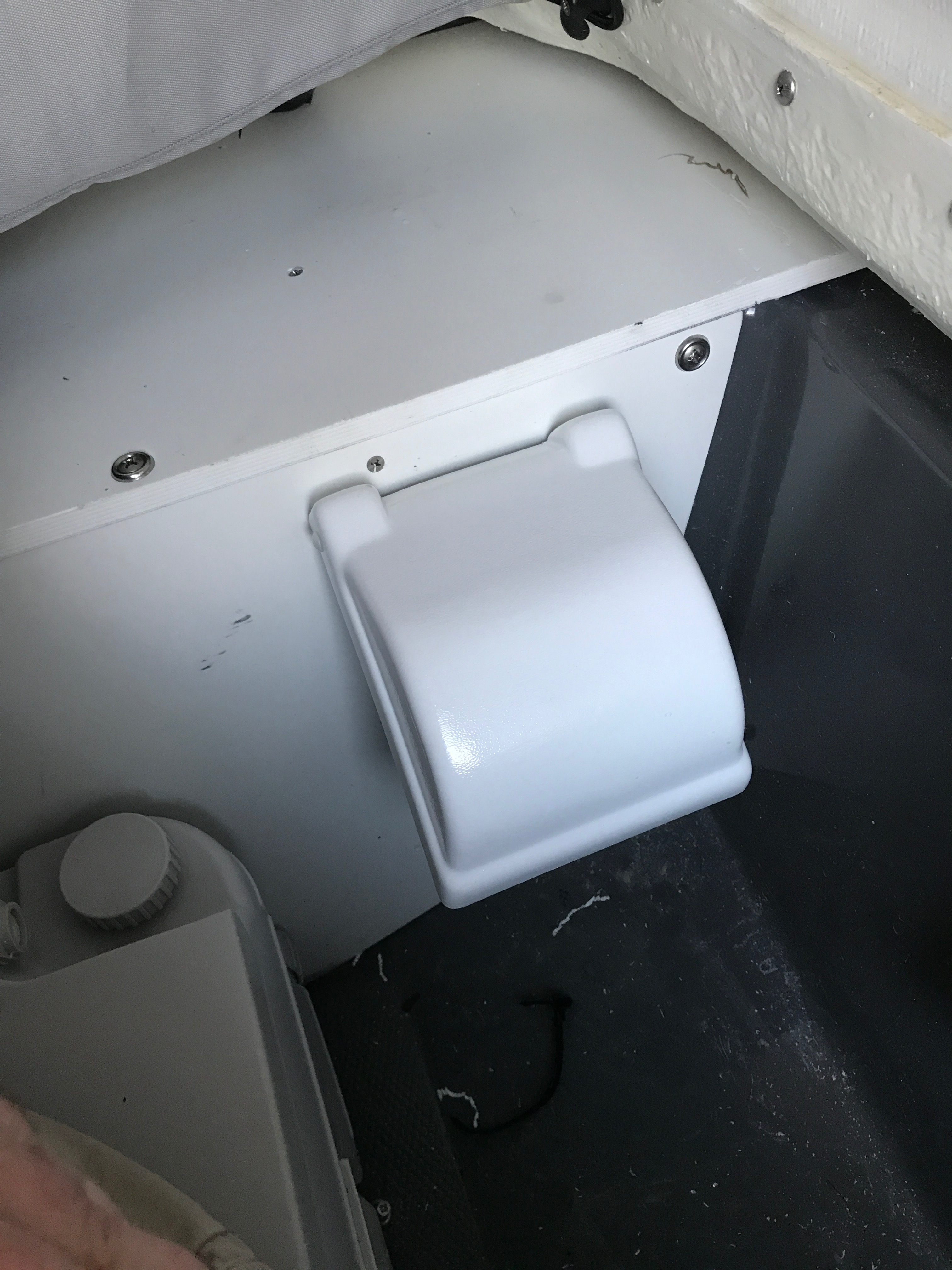

Yamaha 190 FSH toilet paper holder

IMG_0848

• William
• Aug 25, 2017

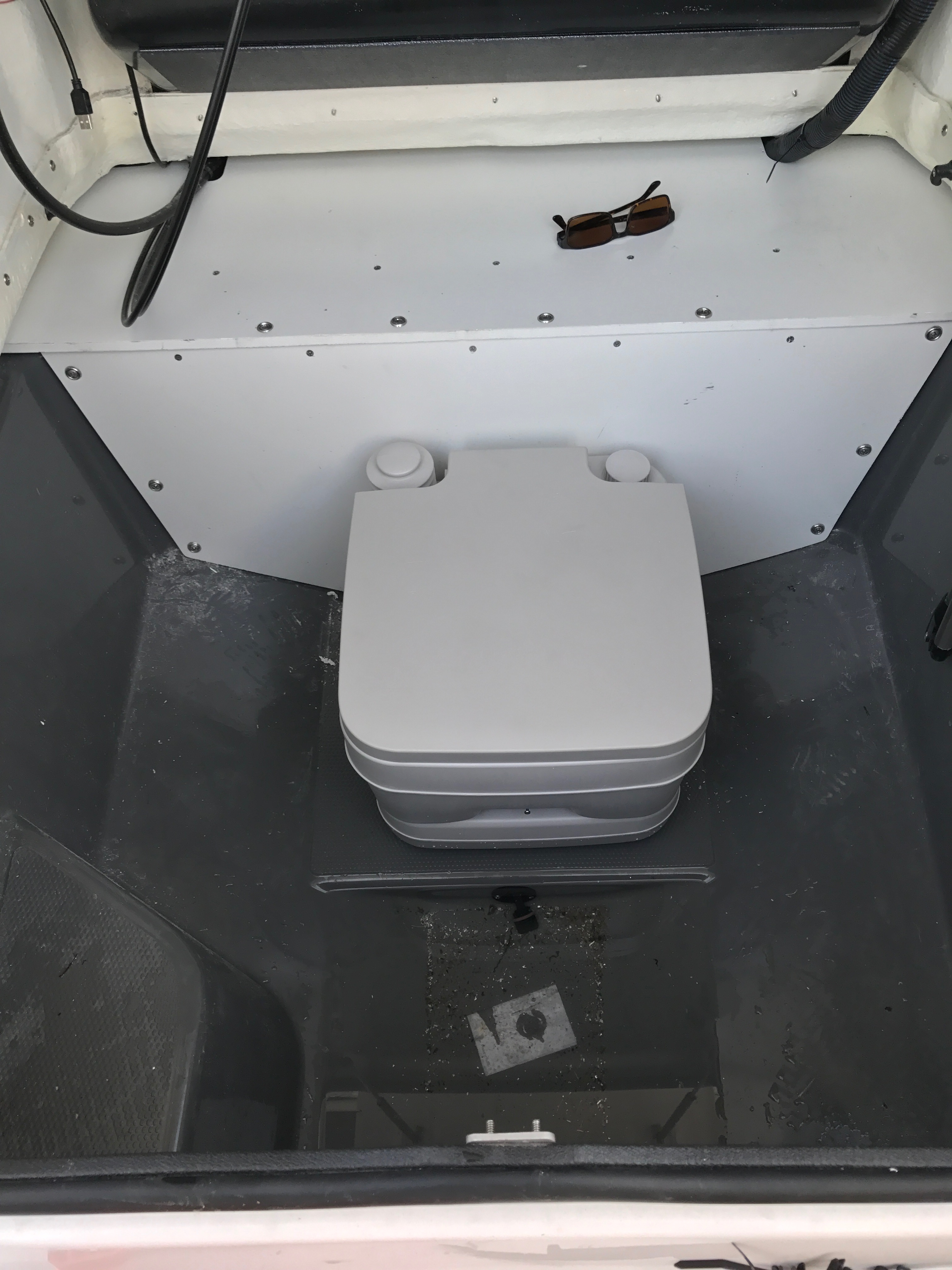

yamaha 190 fsh head install

Installed Thrust Vector to help with low speed steering

IMG_0099

• William
• Aug 25, 2017

Yamaha 190 FSH lights and thrust vector

IMG_0089

• William
• Aug 25, 2017
• 2

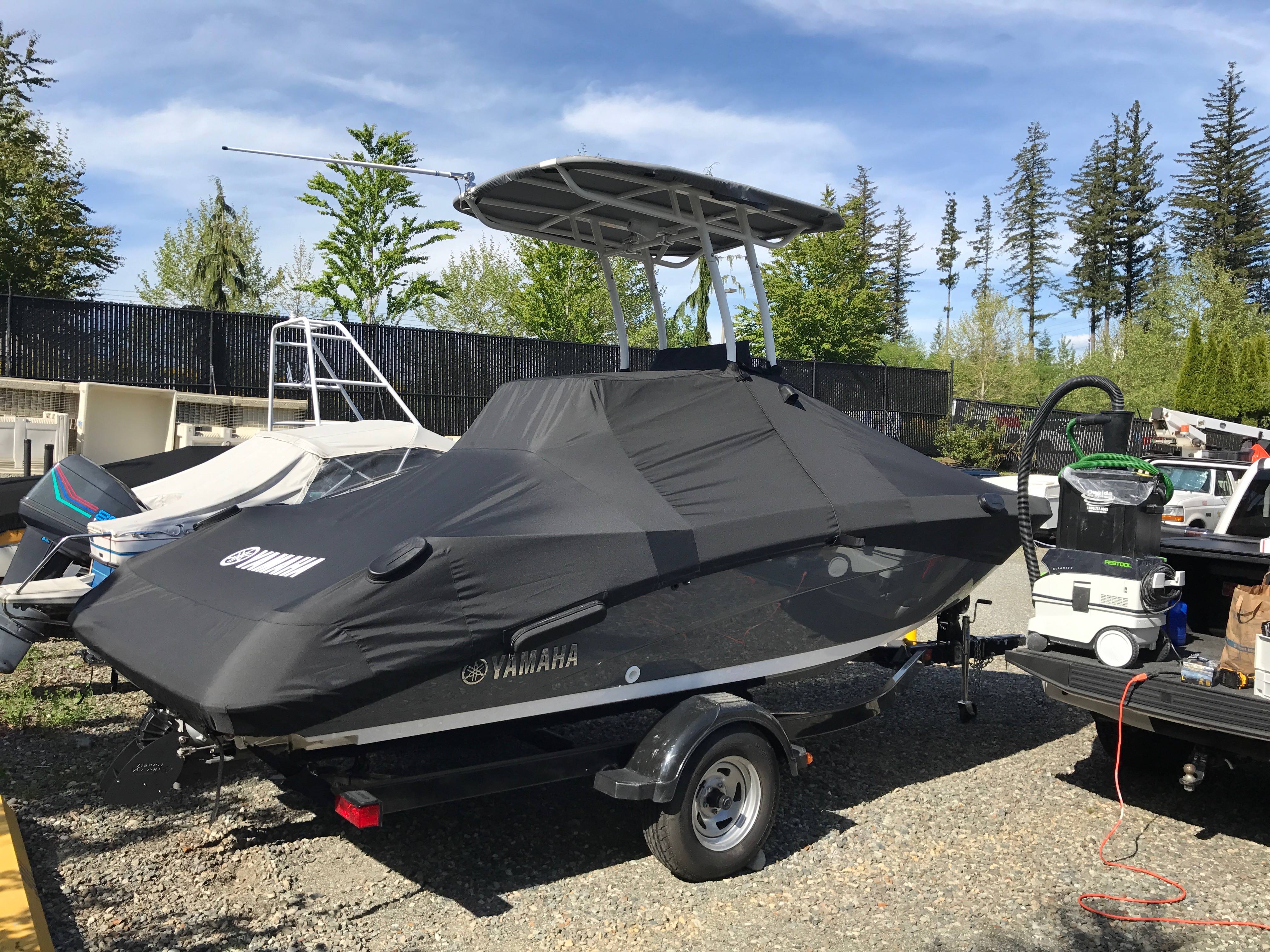

Bought cover for FSH sport, very nice cover, very impressed

IMG_0960

• William
• Aug 25, 2017

Yamaha 190 FSH Sport Cover

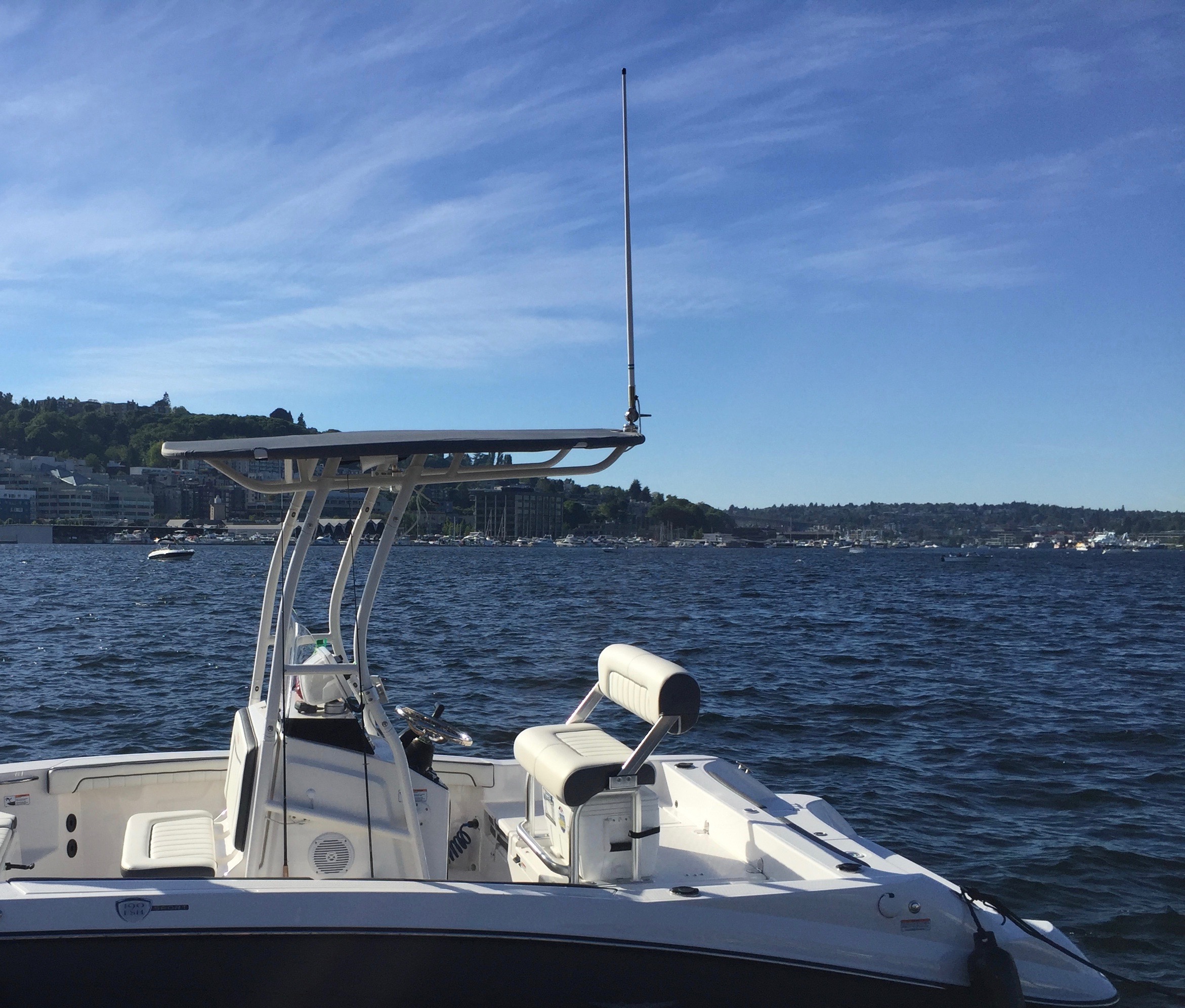

Installed antenna on t-tops ran wire through tubing

IMG_0973

• William
• Aug 25, 2017

Yamaha 190 FSH VHF Antenna

Anyone have experience with installing autopilot on this type of steering?



[veedubtek]

Is that the factory pedestal seat? I've been thinking of adding one on mine also.

No clue on the autopilot, seems that would be a daunting task, but I'm sure it could be done!



[John McLaughlin]

Great additions however the real question is have you caught sufficient fish to offset the cost of the upgrades?



[William]

Is that the factory pedestal seat? I've been thinking of adding one on mine also.

No clue on the autopilot, seems that would be a daunting task, but I'm sure it could be done!

We just ordered it from the dealer, I don't know if it is a Yamaha part but Desert Valley Powersports parts department handled it for us.



[William]

Great additions however the real question is have you caught sufficient fish to offset the cost of the upgrades?

Those are just the necessities, upgrades come later



[Rich NW Jboater]

What part of Washington are you in? I'm in Renton and have the same boat



[William]

Great additions however the real question is have you caught sufficient fish to offset the cost of the upgrades?

Any real fisherman knows the cost will never be offset. lol



[William]

What part of Washington are you in? I'm in Renton and have the same boat

Snoqualmie, we are in Lake WA often



[Rich NW Jboater]

surprised I've never seen ya. I just installed the Seadek cockpit kit and an Axiom 9 with RV-100 transom mount transducer last weekend. Come hell or high water, I'll be out on Lake WA Sunday afternoon, it's killing me



[Rich NW Jboater]

do you post on the 190/210 fsh thread?



[William]

surprised I've never seen ya. I just installed the Seadek cockpit kit and an Axiom 9 with RV-100 transom mount transducer last weekend. Come hell or high water, I'll be out on Lake WA Sunday afternoon, it's killing me

Me too, I wish we lived in a tropical climate.



[William]

do you post on the 190/210 fsh thread?

I will look for it



[jaysen]

can you show how you installed some of your modifications. im not sure how to wire the add on rocket launcher lights without using zip ties. also curious about the seat and how you were able to install it. what secures the head from falling over?



[William]

can you show how you installed some of your modifications. im not sure how to wire the add on rocket launcher lights without using zip ties. also curious about the seat and how you were able to install it. what secures the head from falling over?

For running wire through the t-top frame I drilled a hole at the entry point and at every transition. For example the structure of the frame between the green arrows below is solid so you cannot run wife through these sections, but you can exit and re-enter the frame after this section by drilling more holes. I just drilled the holes where most people will not see them and I used fish tape to pull the wire like you do at home when installing cable through walls.

A note on drilling, I recommend you plug your drain holes on your deck before you do any drilling and thoroughly vacuum the metal shavings after drilling, I let some shavings get in the drain tubes and it is not good at all.

The seat is easy. It comes with a big metal plate that fits perfectly under the deck that the stand sits in. You just drill the holes and tighten the bolts and you are done. Super easy I used the life seal you see in the picture below on every bolt and screw on the boat. You will see when you order the part.

The head comes with brackets you screw into the floor and then snap the head into the brackets. Again, very easy once you see the parts in the box.



[William]

can you show how you installed some of your modifications. im not sure how to wire the add on rocket launcher lights without using zip ties. also curious about the seat and how you were able to install it. what secures the head from falling over?

surprised I've never seen ya. I just installed the Seadek cockpit kit and an Axiom 9 with RV-100 transom mount transducer last weekend. Come hell or high water, I'll be out on Lake WA Sunday afternoon, it's killing me



[ClemsonTiger]

To the OP...forget autopilot. Unless you invent something yourself, AP doesn’t exist for jetboats.

AP requires hydrolic steering.

I have AP on my boat and it’s the best thing I’ve purchased to date.



[William]

To the OP...forget autopilot. Unless you invent something yourself, AP doesn’t exist for jetboats.

AP requires hydrolic steering.

I have AP on my boat and it’s the best thing I’ve purchased to date.

So you don't have a jet boat then? It looks like you have a 190 FSH in your pictures but you say AP does not exist but you have it. I am sorry I am missing something.



[ClemsonTiger]

Used to have a 190...but after 9 months of ownership and 150 hours of fishing the Atlantic, I knew it was time to sell!

I now own a outboard center console.



[William]

Used to have a 190...but after 9 months of ownership and 150 hours of fishing the Atlantic, I knew it was time to sell!

I now own a outboard center console.

Nice, I love center console boats, they are my favorite, which one did you get?



[ClemsonTiger]

Tidewater 250. It has its faults; however, it is an outboard and not a jet which was paramount for me.
